CTP Plate Processor Machine

Place of Origin : China

Brand Name : Superluck

Certification : CE

Model Number : SL-88TH

MOQ : 1UNIT

Price : factory price

Packaging Details : Box boxs

Delivery Time : within 15 days after full payment

Payment Terms : TT/LC

Supply Ability : 500UNITS/YEAR

Contact Now

Brief Introduction of Thermal CTP Plate Processor:

Especially used to develop Thermal CTP Plates. The whole working process contains four steps: Developing - Washing - Gumming - Baking/Drying.

Pipelines :

1,Develop pump pipe 2,Glue pump pipe 3,Develop replenishment pipe 4,Glue recycle pipe 5,Tape water receive 6,Develop replenishment pump 7,Glue pump 8,Develop recycle pump 9,Filter 10,Pump

Drawings of machine:

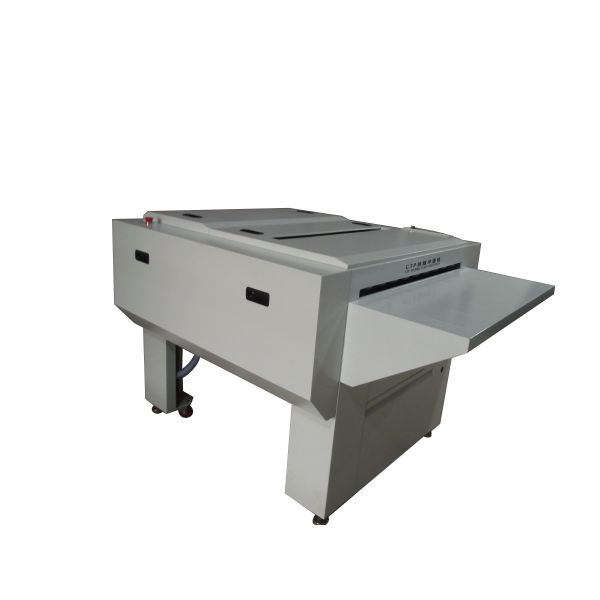

CTP Plate Processor Machine

Machine's Specification:

Model	SL-65TH	SL-88TH	105TH	SL-135TH
Material	Thermal CTP plate
Capacity	20-150 cm/min
Plate width (mm)	650	880	1050	1350
Min. Plate length(mm)	300	450	450	450
Plate thickness(mm)	0.15-0.4
Tank content, developer(L)	25	50	55	68
Tank content, wash(L)	9	13.5	15	20
Adjustable temperature, dev	0 to 40 degree C. adjustable
Adjustable temperature, dry	normal temperature to 70 degree C.
Water consumption, max	6 L/min	8 L/min	9 L/min	12 L/min
Diameter of wash brush (mm)	50
Rotary speed of wash brush	80 rpm
Filter(um)	75
Water supply	Tap water (min. pressure 1 bar)
Gumming	Roller pressing gumming
Diameter of roller	60mm
Dev. replenishment	0-1L per plate
Dev. heating-up rate	0.5 degree C. per minute
Horizontal adjustment	Adjustable
Power supply	380V 3 phases 50-60Hz
Power consumption (kwh)	3.5	3.5	3.8	4.5
Voltage fluctuation	within 10%
Gross weight(kg)	400	500	610	780
Net weight(kg)	320	420	450	650

Note: Special models are customers tailored.
